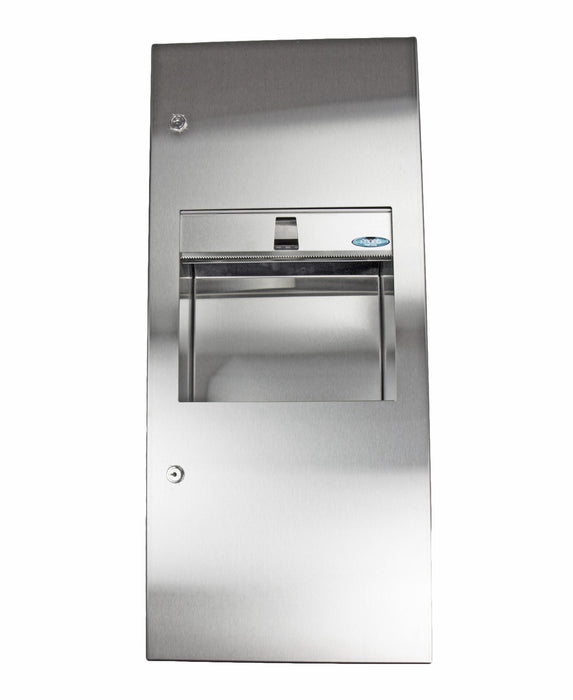

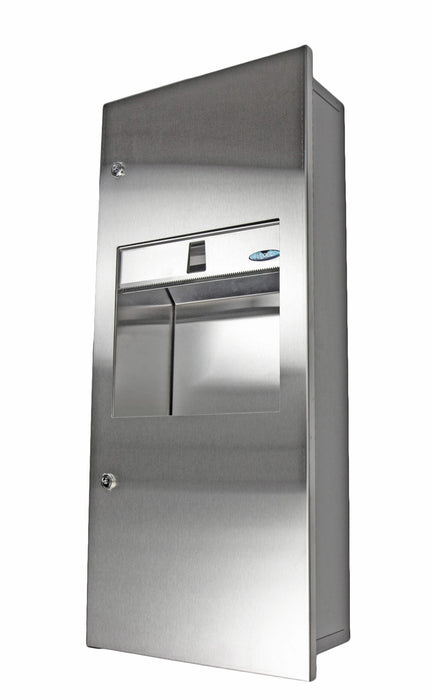

Stainless Steel Combination Dispenser/Disposal Fixture (415-A, 415-B, 415-C)

Frost’s 415 series stainless steel combination dispenser/disposal (415-A recessed, 415-B semi-recessed, 415-C surface mounted) is a compact and durable solution for low-volume Canadian commercial restrooms. Ideal for schools, universities, restaurants, malls, office buildings, condominiums, fitness facilities, and recreation centres across Canada, this unit’s stainless steel construction and sleek design make it a popular choice for low-traffic areas requiring both paper towel dispensing and waste disposal.

Features

• Canadian made with 18 and 20 gauge stainless steel

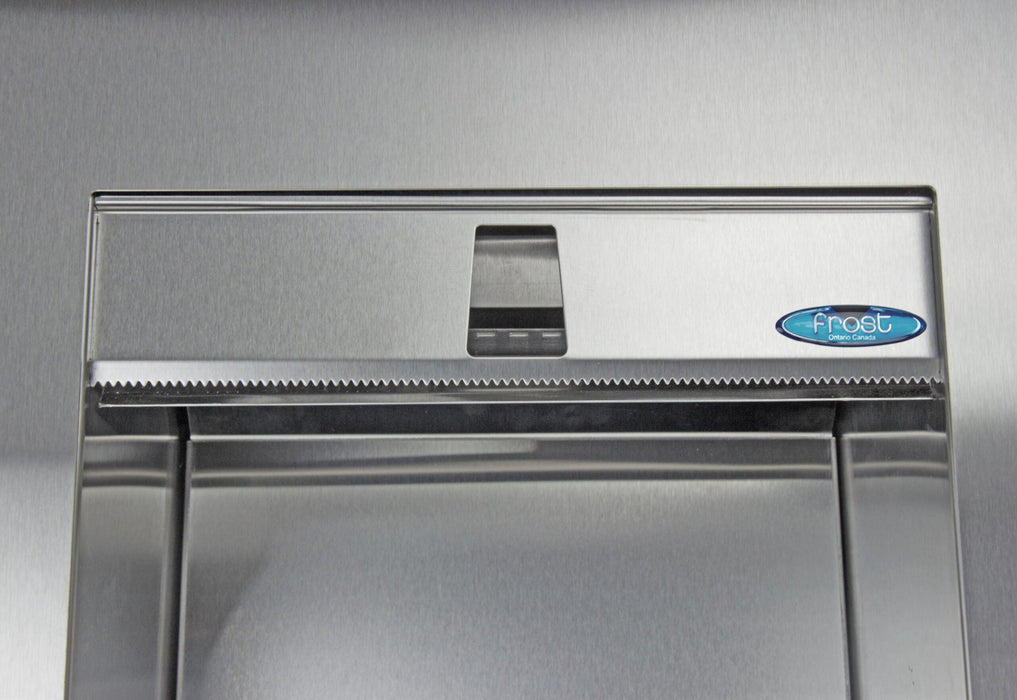

• Stainless steel (safety guarded) saw tooth cutting bar for paper towel dispensing
• Secured with two tumbler keyed locks, keys provided
• All doors hinged with full length stainless steel piano hinges
• Counterbalanced stainless steel door (20 gauge) provides maximum fire protection

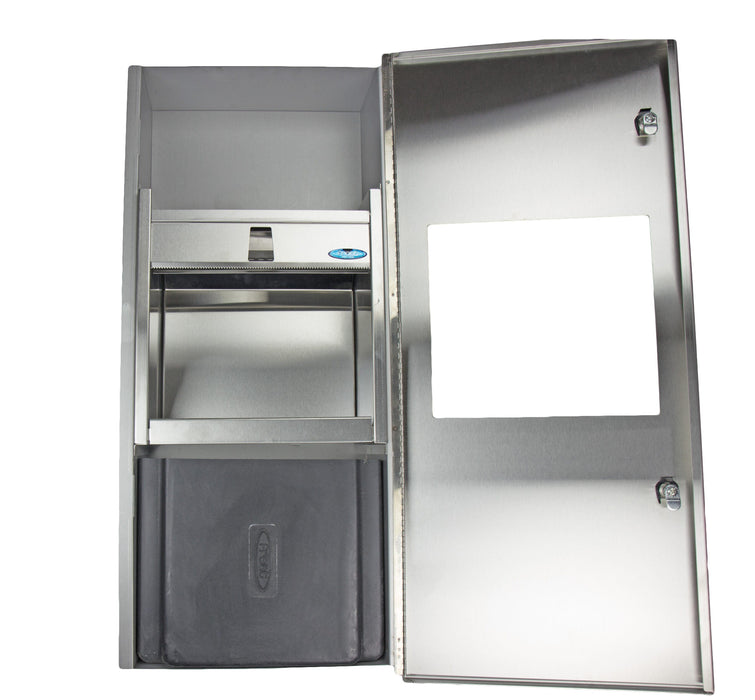

• Removable leak-proof roto-moulded liner
• Dispenses single fold or standard roll paper towels from non-proprietary commercial sources

Specifications

• Product Code: 415-A (recessed), 415-B (semi-recessed), 415-C (surface mounted)
• Product Name: Stainless Steel Combination Dispenser/Disposal Fixture
• Single Carton UPC: 415-A: 624622415105; 415-B: 624622415204; 415-C: 624622415303
• Single Carton Shipping Dimensions: 81.3 cm L x 36.8 cm W x 16.5 cm H (32″ L x 14.5″ W x 6.5″ H)
• Single Carton Shipping Weight: 415-A: 11.3 kg (25 lbs); 415-B: 13.1 kg (29 lbs); 415-C: 14 kg (31 lbs)
• Capacity: 9.5 L (2.1 imp gal, 2.5 US gal)
• Materials: Body: 18 gauge stainless steel; Door: 20 gauge stainless steel type 304 no. 4 brushed finish
• Product Dimensions: 34.9 cm W x 79.4 cm H x 15.6 cm D (13.75″ W x 31.25″ H x 6.1″ D)
• Liner Dimensions: 29.8 cm L x 14.2 cm W x 24.1 cm H (11.75″ L x 5.6″ W x 9.5″ H)
• Product Weight: 415-A: 11.3 kg (25 lbs); 415-B: 13.1 kg (29 lbs); 415-C: 14 kg (31 lbs)

What are Frost towel and waste combination unit receptacles?

Frost’s combination units are stainless steel fixtures for commercial restrooms, integrating paper towel dispensing and waste disposal. Models like 400, 410, 415, and 422 series (recessed, semi-recessed, or surface-mounted) suit low- to high-traffic areas in schools, restaurants, malls, offices, and more. Made from 18 and 20 gauge Canadian stainless steel, they offer capacities from 4.25L to 50L, with manual, controlled, or hands-free dispensing options.

What models of Frost combination towel/waste receptacles are available?

• 400 Series (400-A, 400-B, 400-C): 32L, high-volume, dispenses single fold/standard roll towels.
• 400-14 Series (400-14A, 400-14C, 400-14A-BLK): 18L, shallow depth, multifold/C-fold towels, matte black option.
• 400-50 Series (400-50A, 400-50B, 400-50C): 47L, jumbo roll towels (8″ diameter).
• 400-70 Series (400-70A, 400-70B, 400-70C): 47L, hands-free jumbo roll dispensing.
• 410 Series (410-A, 410-B, 410-C): 16.5L, low-volume, single fold/standard roll towels.
• 410-14 Series (410-14A, 410-14C): 9L, shallow depth, multifold/C-fold towels.
• 415 Series (415-A, 415-B, 415-C): 9.5L, low-volume, single fold/standard roll towels.
• 415-14 Series (415-14A, 415-14C, 415-14A-BLK): 4.25L, shallow depth, multifold/C-fold towels, matte black option.
• 422 Series (422-A, 422-C): 50L, dispenses 500 multifold towels.
• 422-50 Series (422-50A, 422-50C): 50L, controlled jumbo roll dispensing.
• 422-60 Series (422-60A, 422-60C): 50L, mechanical touch-free jumbo roll dispensing.
• 422-70 Series (422-70A, 422-70C): 50L, hands-free jumbo roll dispensing.

What are the key features of Frost combination units?

• Material: 18/20 gauge stainless steel (type 304/430, brushed or matte black/white epoxy finishes).
• Security: Two tumbler keyed locks, full-length piano hinges.
• Waste Bin: Removable, leak-proof steel/roto-moulded liners.
• Dispensing: Manual, controlled push bar, mechanical touch-free, or hands-free (AC adapter or four D batteries for 400-70, 422-70).
• Fire Safety: Counterbalanced 20-gauge doors for fire protection.
• Universal Design: Dispenses non-proprietary towels, reducing costs.

What are the capacities of these units?

• 400: 32L; 400-14: 18L; 400-50/400-70: 47L.
• 410: 16.5L; 410-14: 9L; 415: 9.5L; 415-14: 4.25L.
• 422/422-50/422-60/422-70: 50L.

What paper towels do Frost combination units dispense?

• Single fold/standard roll: 400, 410, 415 series.
• Multifold/C-fold: 400-14, 410-14, 415-14, 422 (500 multifold).
• Jumbo roll (8″ diameter, 1.375″ core): 400-50, 400-70, 422-50, 422-60, 422-70.

Where are these units typically installed?

Ideal for schools, universities, restaurants, malls, offices, condominiums, fitness facilities, recreation centres, and hospitals (hands-free models).

What are the installation requirements?

• Recessed: Wall openings (e.g., 31.5 cm W x 94.6–143.2 cm H x 10.2–21.6 cm D). Mount frame, insert bin.
• Semi-Recessed: Shallower openings (e.g., 7.6 cm D for 400-B). Secure collar to wall.
• Surface Mounted: Drill holes, attach to surface, secure collar.
• Barrier-Free: Top not exceeding 144.7–160 cm (57–63″) from floor, or bottom opening 13–20 cm (5–8″) above floor.
• Note: Use a qualified tradesperson, follow provided guidelines.

How do I maintain these units?

• Cleaning: Use damp cloth, approved stainless steel cleaner. Avoid bleach/acids/chlorides. Use Scotch Brite Pad #7447 for discolouration, wipe with grain.
• Bag Replacement: Remove lid, pop out bag holder, tie off bag, replace with new bag (66–88.9 cm x 91.4–127 cm), drape 6″ over holder.
• Paper Refilling: Unlock, pivot door (or lid for hands-free), insert towels. Switch off hands-free units before refilling.
• Hands-Free Models: Check for paper debris to avoid motor stress.

What is the warranty?

12-month warranty from shipment for defects, covering repair/replacement (freight included). Installation/removal costs and discolouration from harsh chemicals are not covered.

Are they suitable for high- or low-traffic areas?

• High-Traffic: 400, 400-50, 400-70, 422 series (32–50L).
• Low-Traffic: 410, 410-14, 415, 415-14 series (4.25–16.5L).

What are the benefits of hands-free/touch-free features?

• Hands-Free (400-70, 422-70): Motion-activated (6–9″ towel length), ideal for hygiene in hospitals.
• Mechanical Touch-Free (422-60): Cuts 27 cm (11″) towels, 7.6 cm (3″) tab, no electronics.

How do I choose the right unit?

• Traffic: High (400, 422 series), low (410, 415 series).
• Wall Depth: Shallow walls (400-14, 410-14, 415-14).
• Hygiene: Hands-free (400-70, 422-70) or mechanical touch-free (422-60).
• Towel Type: Multifold/C-fold, jumbo roll, or single fold/standard roll.
• Finish: Brushed stainless, matte black, or white epoxy.

Are they accessible?

Yes, designed for ADA compliance with top height not exceeding 144.7–160 cm (57–63″) or bottom opening 13–20 cm (5–8″) above floor.
